Product Details

• Backplane Bandwidth: 880Gbps
• Port Forwarding Rate: 523.776Mpps
• Chassis: 1U 19 inch Standard Box
• Strong Security Protection
• Full Service Management
• 4-Core 1.6GHz Powerful High-Performance CPU
• Supporting Large Capacity SD Memory Card
• Plug and Play
• Uplink Port
  • QTY: 8
  • GE(RJ45): 2
  • 1/10GE(SFP +): 2
  • 10/25GE(SFP28): 2
  • 40/50/100GE(QSFP28): 2
• 10G EPON Port
  • QTY: 8
  • Physical Interface: SFP+ Slots
  • Connector Type: PR30/PRX30
  • Max splitting Ratio: 1:256
• Other Interface
  • 1 x 10/100/1000BASE-T out-band port
  • 1 x CONSOLE port
  • 1 x Micro SD
  • 1 x Type-C
  • 1 x USB3.0
• Operating Environment
  • Working Temperature: -20~+60°C
  • Storage Temperature: -40~+70°C
  • Relative Humidity: 5~95% (non-conditioning)
• General
  • Dimension L x W x H: 442 x 369 x 46.6mm
  • Net Weight: 3.9 Kg
  • Power Supply: AC 100~240 V, 50/60 Hz, 200W
  • DC Power Supply DC: -48V
  • Power Consumption: 145W

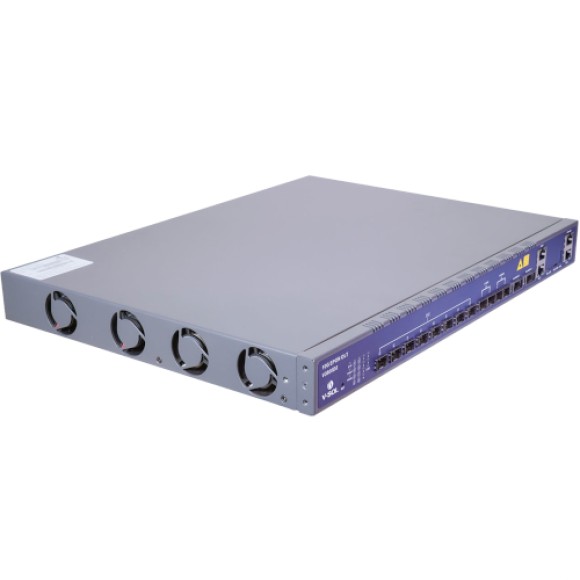

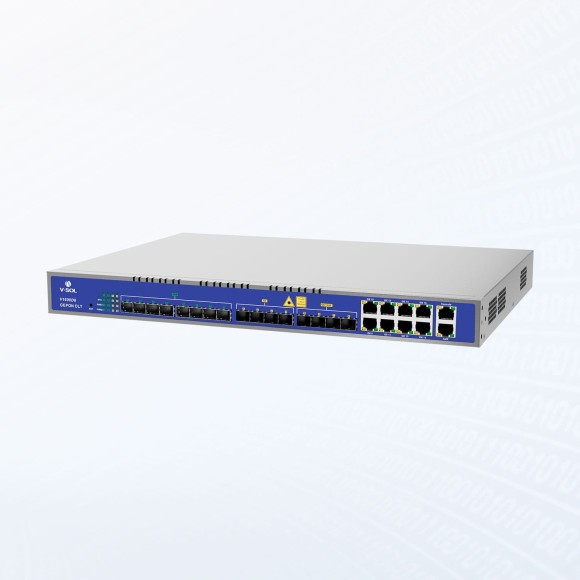

• This Vsol V3600D8 is a 10G EPON optical line terminal (OLT) designed for high-performance networking applications. This OLT transfers data smoothly and guarantees efficient network. It has 8 ports of 10G EPON and is housed in a 1U 19-inch standard rack. It has 4-core 1.6GHz powerful high-performance CPU. It also supports large capacity SD memory cards.
